3 Phase Electric MV Voltage Transformer / Medium Voltage Potential Transformer

Name: 3 Phase Electric MV Voltage Transformer Medium Voltage Potential Transformer
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : CY-EVTSZ3-12WB

Certification : KEMA,SGS,TUV,UL

Place of Origin : Shenzhen

MOQ : 1set

Price : Negetiable

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 36,000,00pcs per year

Packaging Details : 36,000,00pcs per year

Insulation level : 12/42/75kv

Ceertificate : KEMA,SGS,TUV,UL

Installation site : Outdoor

Frequency : 50hz/60hz

Contact Now

Three-phase Electric voltage transformer/voltage Sensor/LPVT

1. Apply to
≤12kV outdoor column installation

2. Application
♦ Voltage sensors for smart grid outdoor overhead lines for voltage measurement, regulation and monitoring;
♦ Voltage sensors mounted on the outdoor overhead lines on the column recloser, circuit breakers and smart meter metering boxes.

3. Technical Data:

Model		CY-EVTSZ3-1OW
Maximum voltage		12kV
Insulation level		12/42/75kV
Lightning impulse withstand voltageck		75kV
Rated ratio	Phrase current	(10000/^3)/ (3.25/^3) V
	Zero sequence current	(10000A/3)/ (6.5/3) V
Phase voltage measurement Accuracy level		0.5
Zero sequence voltage protection Accuracy level		1 (3P)
Burden (load resistance)		2>10MQ
Rated voltage factor		1,2Un continue/1,9Un/8h
Frequency		50/60 Hz
Operating temperature		-40°C to +70°C
Voltage sensor type		Phase voltage + zero sequence voltage sensor
Installation method		Outdoor pillar installation
Implementation of standards		GB 20840.7(GB 20840.6) I EC 60044-7 (I EC 61869-6)
Connection type		Cable waterproof connector - lead pin
Connecting cable		RVSP shielded wire L = 3 m (length can be customized)

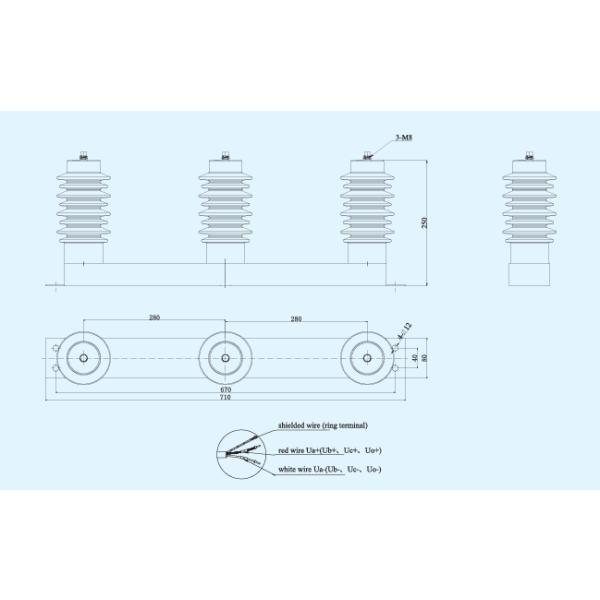

4. Outline Drawing:

3 Phase Electric MV Voltage Transformer / Medium Voltage Potential Transformer
